Traveling Motor Test Stand

液压应用试验装置部门
介绍液压应用试验装置部门的移动式马达试验台(Traveling Motor Test Stand)模型。

谛视

企业领域

液压试验设备

본문컨텐츠

液压试验设备 > 液压试验设备

创新驱动未来

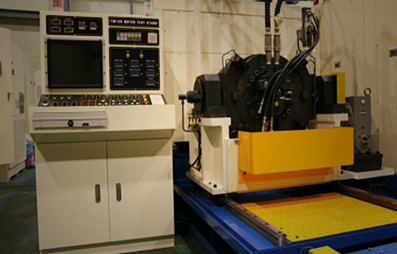

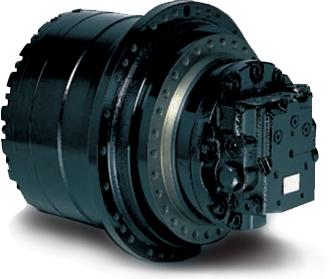

行走马达试验设备

特征(Features)

型号名称 : Traveling Motor Test Stand
构成 :
- ▶ Power Pack (5800 X 4100 X 5100)
- ▶ Bench (4400 X 2150 X 2570)
- ▶ MCC Panel (3100 X 2310 X2570)
- ▶ Control Panel (1400 X 1230 X 2200)
测试机型 : Piston Motor 29~34 Ton, 34~37 Ton, 44~55 Ton

参数 (Specification)

Reduction Gear				Hydraulic Motor						Application
Gear Ratio	Rated Output Torque		Output Speed	Displacement	Output Speed	Max Pressure		Brake Torque(at Motor Shaft)		Application
i	Kgf m	N m	Max rpm	cc/rev	Max rpm	Kgf/㎠	Mpa	Kgf m	N m	ton
53.706	780	7,651	65	39.8	3,900	300	29.4	8.4	82	5~8
53.706	850	8,335	60	55.8	3,900	350	34.3	8.4	82	5~8
56.436	663	6,499	90	33.5	4,500	300	29.4	6.3	62	4~5
56.436	750	7,755	90	33.5	4,500	300	29.4	6.3	62	5~6
45.97	1,100	10,787	60	55.8	3,900	350	34.3	8.4	82	6~8
54.467	1,250	12,250	70	55.8	3,900	350	34.3	12	117.6	8~10
53	1,512	14,823	60	86	3,200	350	34.3	19.7	193	8~10
53	2,151	21,094	60	86	3,200	350	34.3	19.7	193	13~18
53.706	2,616	25,655	60	86	3,200	350	34.3	19.7	193	13~18
48	2,791	27,366	58	140.5	2,800	350	34.3	40.6	398	13~18
39.14	3,488	34,207	70	157.5	2,800	350	34.3	40.6	398	15~20
41.73	3,069	39,883	50	183.9	2,100	350	34.3	49.3	483	18~25
48	4,651	45,609	50	183.9	2,400	350	34.3	49.3	483	18~25
49.65	4,651	45,609	56	174.4	2,800	350	34.3	40.6	398	18~25
63.843	6,977	68,414	40	195	2,600	350	34.3	44.5	436	29~34
46.127	7,200	70,607	52	280	2,400	350	34.3	87	853	29~34
70.15	7,558	74,115	36	195	2,600	350	34.3	44.5	436	34~37
54.47	8,000	78,400	45	280	2,400	350	34.3	87	853	34~37
68.23	10,000	98,060	40	280	2,700	350	34.3	115.7	1,135	45~55

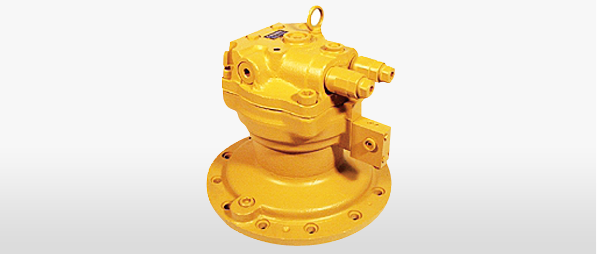

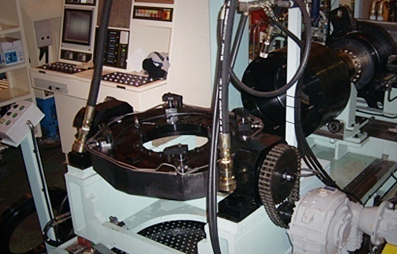

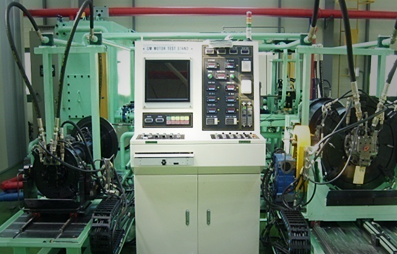

摆动马达试验台

参数 (Specification)

Reduction Gear				Hydraulic Motor								Application
Gear Ratio	Theoretical Output Torque		Max. Speed	Theoretical Output Torque		Max. Speed		Brake Torque		Max. Pressure		Application
i	Kgf m	N m	Rpm	Kgf m	N m	Rpm	CC/rev	Kgf m	N m	Mpa	Kgf/㎠	ton
19.464	250	2452.5	100	12.5	122.9	1,600	31.5	14	137.3	24.5	250	5~6
19.464	400	3,924	85	22.2	217.7	1,600	55.8	18	176.5	24.5	250	7~8
-	-	-	-	35.7	349.6	2,200	64	32	313.8	34.3	350	13~14
-	-	-	-	40.1	393.3	2,200	72	36	353	34.3	350	13~14
-	-	-	-	47.9	469.8	2,200	86	42	411.9	34.3	350	13~17
-	-	-	-	65.6	643.5	1,600	117.8	71	696.3	34.3	350	17~18
-	-	-	-	71.2	698.7	1,700	127.9	71	696.3	34.3	350	17~22
21.581	1,600	15,696	75	78.3	767.5	1,700	140.5	71	696.3	34.3	350	17~25
-	-	-	-	82.7	811.2	1,600	148.5	71	696.3	34.3	350	21~25
-	-	-	-	88.5	868	1,600	158.9	71	696.3	34.3	350	29
24.739	2,000	19,620	70	94.4	925.4	1,500	169.4	71	696.3	34.3	350	29~32
-	-	-	-	100.3	983.3	1,500	180	120	1176.8	34.3	350	25~30
-	-	-	-	108.3	1062.5	1,500	194.5	120	1176.8	34.3	350	30~32
-	-	-	-	117	1147.2	1,500	210	120	1176.8	34.3	350	25~32
19.56	2,400	23,544	70	139.3	1365.7	1,400	250	120	1176.8	34.3	350	32~34
21.968	2,700	26,487	65	139.3	1365.7	1,400	250	120	1176.8	34.3	350	32~34
19.56	2,400	23,544	70	142	1392.5	1,400	278.8	120	1176.8	31.4	320	34~42
21.968	2,700	26,487	65	142	1392.5	1,400	278.8	120	1176.8	31.4	320	34~42

Rated Pressure		Max Pressure		Max. Speed For self priming	Max. input Torque		Application
Kgf/㎠	Mpa	Kgf/㎠	Mpa	rpm	Kgf·m	N·m	ton
320	31.4	350	34.3	2,650	35	343	13~17
320	31.4	350	34.3	2,400	54	529	13~17
320	31.4	350	34.3	2,360	60	588	20~25
320	31.4	350	34.3	2,150	114	1,117	29~37
320	31.4	350	34.3	1,950	112	1,098	39~45
350	34.2	400	39.2	2,450	75	735	20~25
350	34.3	400	39.2	2,400	90	882	29~34

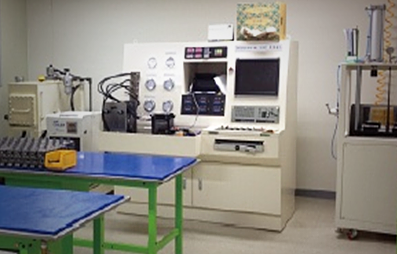

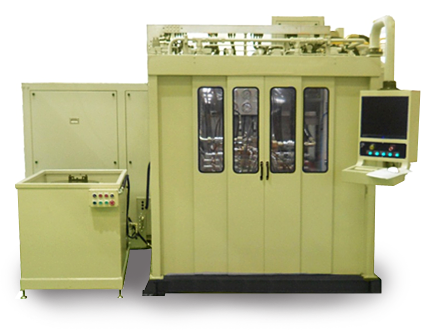

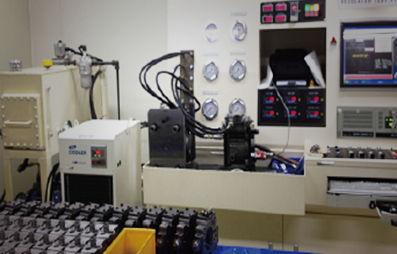

多路控制阀试验台

特征 (Features)

TEST MODEL : 1 Type (KVMG270 – 16 Model)
Line Working Pressure : NORMINAL 400bar (Elec’Motor – 110Kw-6P)
Line Flow rate : MAX 200lpm – 2 Station
Oil Reservoir : 2,000LT (Clean 1200LT, Dirty 800LT)
Oil SIZE : ISO VG #46

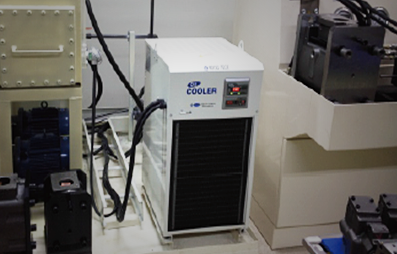

Cooling System : Water Cooler Type (24M’/h at 32℃)
ELEC’Source : Main – 270KW X 3Φ-AC440V-60Hz, Control-1Φ-AC220V-60Hz

Regulator

参数 (Specification)

Double Pump	Type of Regulator
Double Pump	FRONT	REAR
K3V63DT-1R0R-9C0S-1D	2936-9C22	2936-9C0S
K3V63DT-1ZDR-9N0T-ZV	2936-9N0V-V	2936-9N0T-V
K3V63DT-1R0R-9N1S-1C	2936-9N12	2936-9N1S
K5V80DT-1PCR-9C05	2938-9C07	2938-9C05
K5V80DTP1JHR-9C05-1	2938-9C07	2938-9C05
K5V80DTP1JHR-9C05	2938-9C07	2938-9C05
K5V80DT-1PDR-9N0J-ZV	2938-9N0M	2938-9N0N
K5V80DT-1PDR-9N0J-ZV	2938-9N02-V	2938-9N0J-V
K5V80DT-1PDR-9N0Y-ZV	2938-9N0X-V	2938-9N0Y-V
K3V180DTH1POR-9N1S-A	293H-9N1M	293H-9N1S
K3V180DTH1NOR-FN0S-1	293H-FN0M	293H-FN0S
K3V180DTH1POR-9C0S-A	293H-9C0M	293H-9C0S
K3V180DTH1POR-9C0S-1A	293H-9C0M	293H-9C0S

Single Pump	Type of Regulator
K3V180DTH1J0R-9N2A	293H-9N2A
K3V1112DT-1R5R-2N19-B	293G-2N19
K3V1112DT-1R5R-2N19-1B	293G-2N19
K3V112DT-17ER-9N3P	293G-9N3P
K3V112DT-1CER-9C32-1C	293G-9C32
K3V140DTP1H9R-9C09	293S-9C09
K3V140DTP1PDR-9N01	293S-9N01
K3V140DTP1N9R-9N07-V	293S-9N07-V
K3V140DTP1J9R-9C12	293S-9C12
K3V140DT-1R2P-9N29-A	293H-9N29
K3V140DT-1R2P-9N39-A	293H-9N39
K3V140DT-1CER-9C12-B	293H-9C12
K3V140DT-1CER-9C12-C	293H-9C12
K3V140DT-1CER-9C12-D	293H-9C12
K3V180DT-1RER-9N69-B	293H-9N69
K3V180DT-1RER-9C69-D	293H-9C69
K3V180DT-1J0R-2N12	293H-2N12
